Adblue Station

Eaglestar Energy Technology Co., Ltd. is one of the most professional manufacturers and suppliers of adblue station in China. Please feel free to buy customized adblue station at competitive price from our factory. For more cheap products, contact us now.



Eaglestar Adblue Station

You run a truck stop, a depot, or a fleet yard. Every day, diesel trucks roll in needing more than just fuel. They need AdBlue. Not having it on site means sending drivers to the nearest truck stop - a 20-minute round trip, multiplied by fifty trucks, and that is hours of idle time lost.

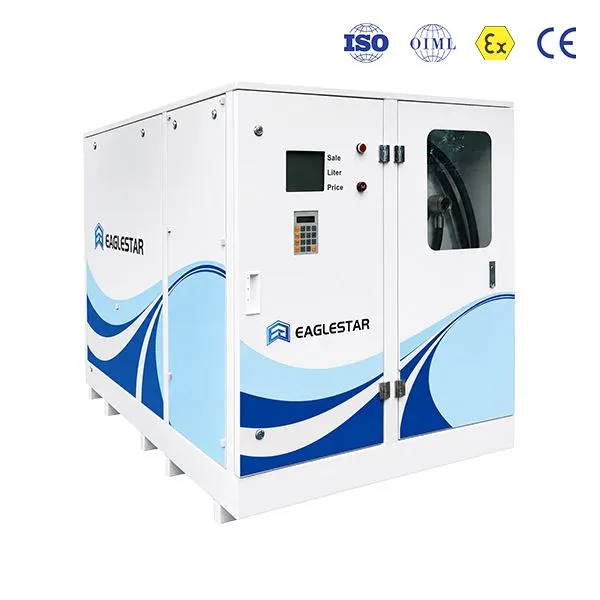

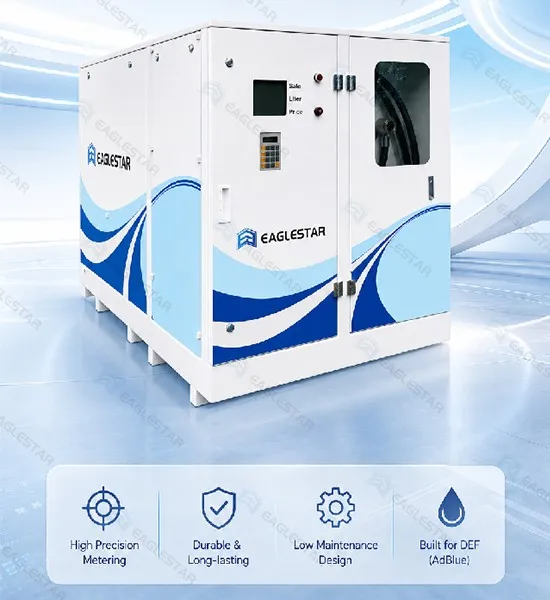

The Eaglestar AdBlue Skid Station keeps that from happening. We designed it for outdoor installation, right next to your fuel island. The tank starts at 1,000 liters and scales up to 60,000 liters, so you pick the size that fits your daily volume. On the inside, double-wall construction means two layers between the AdBlue and the ground. The outer shell is steel. The inner tank is HDPE. Between them sits a monitored gap. If the inner wall ever fails, the fluid stays contained. Your site stays clean. Your compliance stays intact.





The Eaglestar AdBlue Skid Station meets ISO 22241-3 for AdBlue handling - that is the standard for maintaining fluid purity from tank to vehicle. A submersible pump pulls from the bottom of the tank. It delivers 70 liters per minute through the hose. A truck with a 100-liter AdBlue tank fills in about one and a half minutes. No waiting. No transferring from barrels. The Adblue dispenser itself supports one hose or two hoses. Two hoses mean two trucks refilling at the same time from the same Adblue skid Station. Flow rate per hose stays steady regardless of whether the other hose is running. Accuracy holds at ±0.25 percent. So every liter you sell, you meter exactly. No giveaways. No guesswork. The entire Adblue skid Station comes pre-assembled on a steel skid. You drop it off a truck, place it on level ground, connect power - AC 220V or 380V - and start dispensing. The electrical components carry an explosion-proof rating of ExdmbⅡAT3 GB. The system runs in ambient temperatures from -20°C up to +50°C, with humidity up to 95 percent. Noise stays at or below 75 decibels, quieter than most air compressors. The Adblue dispenser screen shows price, volume, and total in 7-digit displays.





You also get an analog level indicator on the tank - a visual check at a glance, no screen required. For remote monitoring, telemetry is optional. Stock levels, sales data, and system status can all be tracked off-site. You also have the option to add a corporate logo on the dispenser panel. The station works for your drivers - fill and go, no extra stops. It works for you - lower operating cost, fewer delivery runs, and a clean installation that takes days instead of months.





On-site AdBlue availability -- On-site AdBlue availability

Double-wall tank construction -- Two layers between fluid and ground; monitored interstitial gap

Tank capacities -- 1,000 liters up to 60,000 liters, customizable

ISO 22241-3 compliance -- Meets international standard for AdBlue handling and purity maintenance

Submersible pump with 70 L/min flow -- Draws from tank bottom; 70 liters per minute, no suction delay

Single or dual hose dispenser -- One skid, two hoses, two trucks refilling simultaneously

±0.25% metering accuracy -- Per-transaction accuracy; every liter measured exactly

Explosion-proof rating -- ExdmbⅡAT3 GB certification on all electrical components

Pre-assembled skid design -- Arrives fully assembled; no on-site construction; operational within days

Wide operating range -- -20°C to +50°C ambient; up to 95% relative humidity

Low noise emission -- ≤75 decibels during operation

Visual tank level indicator -- Analog gauge on tank body; quick visual check without powering up

Optional telemetry -- Remote monitoring of stock levels, sales data, system status

Customizable branding -- Corporate logo printable on dispenser panel

Safe & compliant -- Double-wall + monitored gap + explosion-proof + ISO 22241-3





Power Voltage	Three Phase 380V (+10%,-15%), Frequency: 50Hz ±1 Hz
	Single Phase 380V (+10%,-15%), Frequency: 50Hz ±1 Hz
Flow Range	(5~30) L/min
Noise Level	≤70dB
Single Counting Range	Volume: (0-9999.99) L
	Amount: (0-9999.99) ￥
Total Cumulative Count Range	0-9999999.99L
Unit Price Range	0-99.99￥/L
Ambient Temperature	-25℃ ~ +55℃
Relative Humidity	≤95% RH
Atomospheric Pressure	86 kPa ~106 kPa
