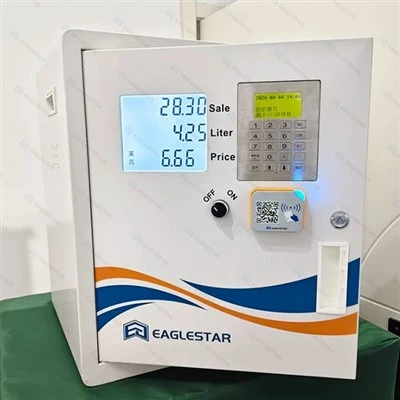

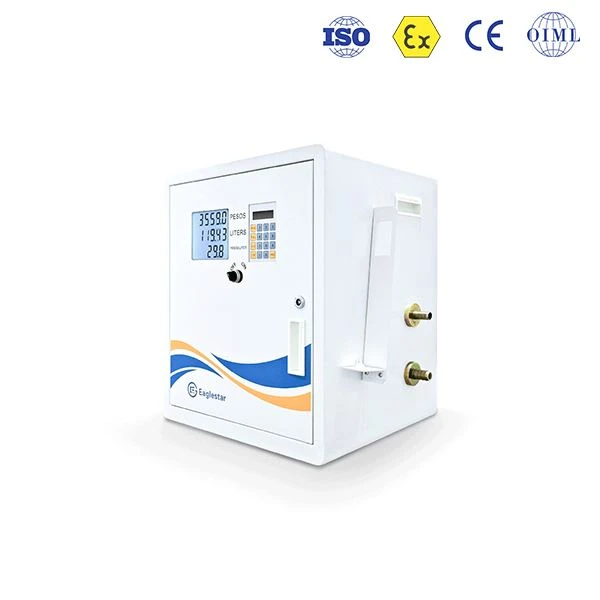

Trunk Mounted Mobile Fuel Dispenser
4-piston flow meter 220V AC pump available Without DC or AC pump, submersible type Italy PIUSI high quality DC 24V pump Standard duty: 50 liter per min. 7-7-5 LCD display (standard 6-6-4) 24V DC pump and motor Emergency button stop Customized logo paining on front pane Italy PIUSI BRAND DC PUMP...
Description
Eaglestar Energy Technology Co., Ltd. is one of the most professional manufacturers and suppliers of trunk mounted mobile fuel dispenser in China. Please feel free to buy customized trunk mounted mobile fuel dispenser at competitive price from our factory. For more cheap products, contact us now.
| Pump inlet vacuum | ≥54kPa |
|
Ambient temperature |
-20℃ - +50℃ |
|
Relative humidity |
≤95% |
|
Noise Level |
≤75dB |
|
Explosion proof class |
Exdmb II AT3 GB |
|
Input power supply |
AC 220V (-15% +10%) or 380V |
|
Communication Mode |
/ |
|
Range of flow rate |
(5-50 or 7-70) L/min |
|
Minimum measured |
5 or 7 L/min |
|
Accuracy |
±0.25% |
|
Digits of Display |
Sale: 7digits |
|
Liter: 7digits |
|
|
Range of electronic totalizer |
Sale: 0.00-99999999.99 |
|
Liter: 0.00-99999999.99 |
|
|
Digits of Unit Price |
5 digits |
|
Range of electromagnetic totalizer |
(0-99999999) |
- 4-piston flow meter
- 220V AC pump available
- Without DC or AC pump, submersible type
- Italy PIUSI high quality DC 24V pump
- Standard duty: 50 liter per min.
- 7-7-5 LCD display (standard 6-6-4)
- 24V DC pump and motor
- Emergency button stop
- Customized logo paining on front pane
- Italy PIUSI BRAND DC PUMP
- Heavy duty: 70 liter per min.
| Model | Pump | Nozzle Fuel Product | Diemnsion |
| EGM-111G-C18 50L/M |
G: gear pump S: submersible pump |
1hose, 1product, 1display | Package: 600*520*790 |
| EGM-111S-H21 50L/M | Package: 700*490*1040 |
-
Refueling at the Point of Operation
The Eaglestar EGM Mobile Fuel Dispenser is designed for operations where access to a permanent fuel station is limited. Mounted on a suitable vehicle, it allows fuel to be delivered directly to machinery, generators, and fleet vehicles at the worksite.
-
Adaptable to Different Power Sources
Different jobsites have different power conditions. The EGM truck-mounted fuel dispenser can be configured for 24V DC or 220V AC power, with engine-driven options available for applications requiring greater independence from external electricity.
-
Better Control Over Fuel Usage
Fuel consumption is easier to monitor with an integrated flow meter. As a mobile fuel dispensing system, the EGM provides measurable dispensing data that can support daily fuel records, stock management, and internal fleet accounting.
-
Designed Around Limited Vehicle Space
The EGM combines the pump, meter, hose, and related components within a compact structure. This mobile fuel dispenser layout makes practical use of available vehicle space while keeping the main operating components accessible when refueling is required.
-
Safety Features for Daily Fuel Handling
The Eaglestar fuel dispenser incorporates practical protection features, including emergency shut-off, grounding, anti-static components, and automatic nozzle shut-off. These features help operators manage routine fuel transfer more safely and reduce the possibility of overfilling.
-
A Practical Solution for Mobile Fleet Fueling
From construction machinery and mining equipment to agricultural vehicles and backup generators, the Eaglestar EGM diesel fuel dispenser is suited to a range of mobile fueling applications. By taking the fuel supply closer to the equipment, it can help reduce avoidable refueling trips and keep field operations moving.
hanger
gear pump
flow meter
nozzle and hose
Electromagnet totalizer

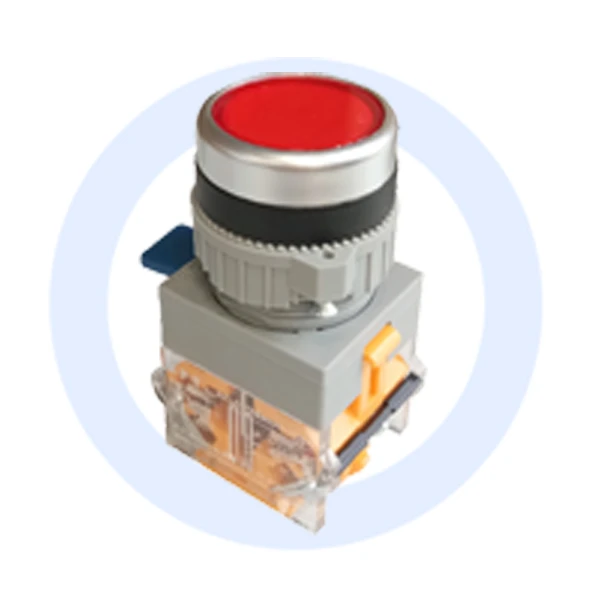

Emergency stop button
Junction box
Explosion proof
Explosion proof pulser
Explosion proof motor
LCD display
Keypad
What fuels can the EGM Mobile Fuel Pump dispense?
The EGM can be configured for common liquid fuels such as diesel and gasoline, depending on the selected pump, hose, nozzle, and system configuration. The suitable configuration should be confirmed according to the fuel and local operating requirements before ordering.
Is the EGM suitable for remote and outdoor applications?
Yes. The EGM is designed as a vehicle-mounted mobile fuel dispenser for applications such as mining, construction, agriculture, fleet operations, and remote fuel distribution. Its compact design makes it suitable where a permanent fuel dispenser is impractical.
Can the EGM configuration be customized?
Yes. Different pump types, flow rates, display options, power configurations, and other features can be selected according to the application. For example, the product range includes gear-pump and submersible configurations, while 24V DC and 220V AC pump options are available.
Can the EGM be used for fleet fuel management?
Yes. Its metering system allows operators to record the amount of fuel dispensed, making it suitable for fleet yards, construction equipment, generators, and other internal fueling operations where fuel consumption needs to be monitored.
