Home Appliance 800W in-Built Controller Brushless Motor for Laundry Dryer

We have a scientific and standardized management model and a strict and effective quality assurance system, adhere to the "diligence, rigorous, pragmatic and innovative" work style, and concentrate on the development, production and application of high-quality oil tank level sensor, service station pump, retail fuel dispensers. We are sincere to all colleagues, mutual trust, positive communication, sincere cooperation, and jointly promote the development of the company. In the spirit of honesty and trust, we establish a good interactive and cooperative relationship with customers and manufacturers, and pursue the steady and rapid growth of the enterprise. Our mission is simple: To supply the best items and service to our customers at the lowest prices possible. We provide first-class technology, products and services to satisfy our customers and advocate personalized service.

cTechnical Standard

All the Eaglestar gas pump dispenser are designed and produced with application to GB/T 9081-2008 Fuel dispenser standard for vehicle and JJG 443-2015 Fuel dispenser calibration regulations and (OIML)R117 and R118.



Standard Configuration

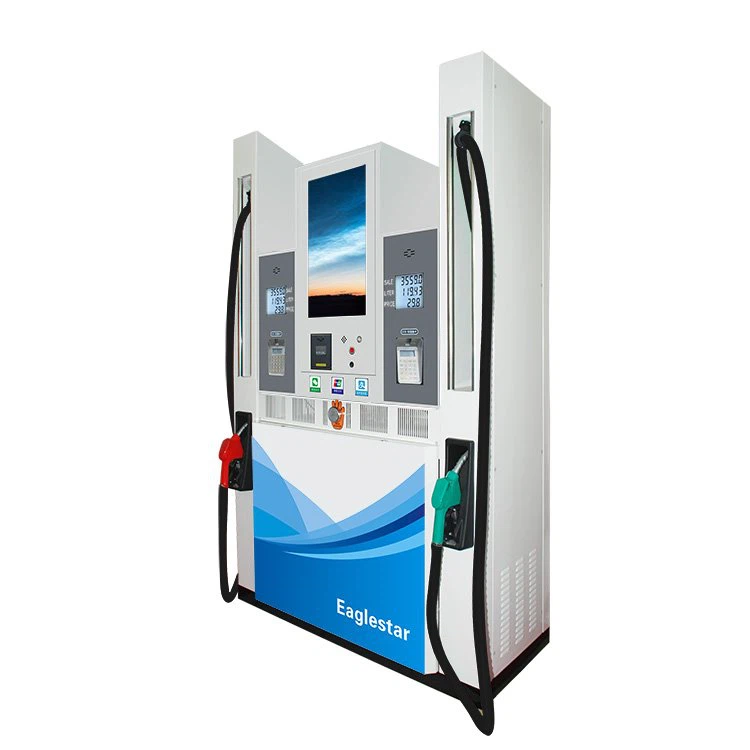

EG7 PLUS series gas pump dispenser Basic models and standard features:

●4 hose 2 product, 6 hoses 3 product

●Standard duty: 50 liters per min.

●Gear pump and 4-piston flow meter

●32 inch LED display

●775 LCD display

●Sight glass

●Single phase motor

●Emergency button stop

●Non resettable electromagnetic tantalizer.

●RS-485 and current loop for POS communication

Optional features

●Heavy duty : 70-80 liters per min.

●3 phase motor

●Built in Printer for receipt

●Card reader for prepay card

●Speaker voice system

●Double swivel

●Breakaway coupling

●Vapor recovery system

●Submersible type

●Customized logo painting on front panel

Models :

Model	Pump	Nozzles Products and CPU boards	Dimension
EG7 -422V or G (PLUS)	V: vane pump G : gear pump	4 hose 2 products 2 displays	Net size: 1250*710*2300 Package: 1350*730*2350
EG7-424V or G (PLUS)		4 hose 2 products 4 displays
EG7-632V or G (PLUS)		6 hose 3 products 2 displays
EG7-422S (PLUS)	Submersible dispenser	4 hose 2 products 2 displays
EG7-424S (PLUS)		4 hose 2 products 4 displays
EG7-632S (PLUS)		6 hose 3 products 2 displays

Technical parameters :

●Accuracy：±0.25%

●Flow rate：Standard duty (5~50)l/min, heavy duty (7~70)l/min.

●Digits for sales : 7 digits

●Digits of volume : 7 digits

●Digits of unit price : 5 digits

●Mechanical totaliser : 7 digits

●Electronic totaliser : 10 digitis

●775 LCD display

●Minimum measurement：5l

●Inlet pressure：≥54kpa

●Noise：≤70db(a)

●Application products：Gasoline, diesel and kerosene

●Motor：Ac380v or 220v 50hz (+10%, -15%) explosion proof, continuous duty with over load protection

●Temperature：-25°c ~ 55°c

●Humanity：≤95%

●RS-485 and current loop for POS communication

●Ex mark：Ex d ib mb iia t3 gb

●Ex approval：Cnex16.1148

●Measurement approval：Yuzhi 00000374

●4-piston flow meter

Packing,Storage,Handling and Transportation

Wooden Package or Carton Package for EG7 PLUS series gas pump dispenser.

48 units for 40 foot container.

Main Partners in the World:

FAQ

How can I customize the product to fit my needs?	Feel free to reach out to our sales manager, who can assist you in selecting the right products or recommend options based on your requirements. If you already have specific ideas, just share them with us. We'll coordinate with our R&D team to develop a comprehensive plan customized for you.
Is it possible to visit the factory?	Absolutely, you're welcome to visit Eaglestar's headquarters in Henan, China. If needed, we can provide an official invitation letter for your business trip. Eaglestar is here to fully support and assist you throughout your visit to China.
Can the product be upgraded ?	Certainly! Yes, we offer the latest software upgrades for our products. We will tell you promptly and can perform the upgrade remotely online or ship the equipment to you if needed
What about after-sales service?	Generally, Eaglestar offer 24/7 online assistance to address any questions you might have about the product. For our key clients, we also create dedicated groups on WeChat and WhatsApp to ensure quick and direct communication. Please don't hesitate to reach out to us as soon as needed.
How do I make a payment?	Eaglestar offers a variety of payment options including bank transfer, telegraphic transfer (TT), PayPal, credit card, and Alibaba payment. Typically, we require 30% payment upfront and the remaining 70% before shipment. Also, we provide fast delivery with a lead time of just 20 to 30 days.
