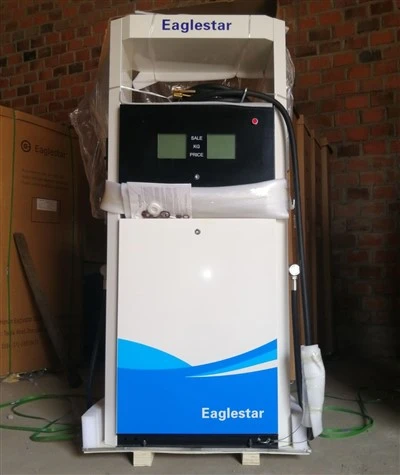

LPG Gas Filling

Eaglestar Energy Technology Co., Ltd. is one of the most professional manufacturers and suppliers of lpg gas filling in China. Please feel free to buy customized lpg gas filling at competitive price from our factory. For more cheap products, contact us now.



Why Choose Eaglestar LPG Gas Pump Machine?



Eaglestar LPG gas filling pumps are designed with advanced technology and superior craftsmanship to deliver unmatched performance and durability. Engineered for precision, safety, and ease of use, these dispensers meet the rigorous demands of modern fueling stations while ensuring a seamless experience for operators and customers alike.



Advantages



• High-Performance Flow Meter: Eaglestar LPG flow meter is a four-piston positive displacement type, ensuring accurate and consistent fuel measurement. Integrated with a built-in check valve and a stainless-steel bush, it provides exceptional wear resistance and reliability. Manufactured under strict quality control standards, the flow meter guarantees high precision, durability, and a long operational life.



• Integrated Air Separator: Our innovative LPG separator combines a check valve, filter, and bypass pipe into a single unit, minimizing component complexity while enhancing durability. This design ensures efficient operation and reduces maintenance needs, making it an ideal choice for busy fueling stations.



• Corrosion-Resistant LPG Nozzle: The LPG nozzle features a 360° swivel inlet for effortless handling and precise control. Constructed with copper, aluminum, and stainless-steel components, the nozzle is protected against corrosion, ensuring leak-free performance over an extended lifespan. Its ergonomic design improves usability, enhancing the overall fueling experience.



• Advanced Solenoid Valve: The solenoid valve incorporates a corrosion-resistant diaphragm designed to withstand low temperatures. Manufactured from high-grade stainless steel, the valve resists rust and magnetic retention. With Class F insulation, it provides dependable performance in challenging conditions.



• Durable and Flexible LPG Hose: Our high-pressure LPG hose is made from abrasion-resistant rubber, designed to endure intense usage while remaining flexible and easy to handle. Customizable in size and color, the explosion-proof, static-free delivery hose enhances operational safety and efficiency.



• Robust Stainless-Steel Body: The LPG gas dispenser's stainless-steel housing offers superior corrosion resistance, ensuring long-term durability. Integrated spill monitoring further enhances safety by detecting potential leaks early, minimizing environmental impact and operational risks.



Technical Specification



Voltage: 220V, 50-60Hz	Measurement unit: Liter or KG(optional)
Flow Rate: 5-50L/min	Applicable medium: liquefied petroleum gas
Accuracy: ±0.5%	Noise: ≤80dB(A)
Digits for sales: 0-99999.00 currency unit	Air pressure: 86~106kPa
Digits of volume: 0-9999.00 L	Rated working voltage: 2.2Mpa
Digits of unit price: 0.01-999.99 currency unit/L	Ex-proof Motor: 380V, 50Hz 4Kw, 220V, 50Hz 4Kw
Electronic Totalizer: 10 digits	Solenoid valve: AC220V Ex Proof
Temperature: -25℃~+55℃	Safety return valve: 1.6MPa
Working Presure: 0~2.5MPa	Air tightness Test: 1.8MPa
Intensity Test: 2.0MPa	Communication: RS485



Options



• Same body design fuel- LPG dispensers

• POS-Cash register

• Hose and nozzle size

• Stainless steel frame for special applications



LPG Parts



• LPG Flow Meter



LPG flow meter is four-piston positive displacement type, with built in check valve. The stainless steel ensures the high performance of flow meter. The strict quality control system enable it with advantage of high reliability, good wear ability, precise measurement, and long life time usage.



Maximum Working Pressure	1.8MPa	Adjustable Min. Volume	0.1%
Flow meter Rate	5-60L/min	Accuracy	±0.5%
Discharge Rate Per Revolution	0.5L/r	Repeatable Tolerance	≤0.25%



• LPG Separator



Eaglestar air separator is one combined separator with check valve, filter, by pass pipe to reduce the components amount and enhance the usage time.



Working pressure: 2.5MPa	Filter accuracy: 0.08mm
Overflow pressure: 4.0MPa



• LPG Nozzle



The LPG nozzle is equipped with a single plane 360° inlet swivel which make the usage very easy. The inner copper, aluminum and stainless steel structure protect the nozzle free of corrosion. The excellent workmanship process make the nozzle work long life time without leakage.



Max. Operating Pressure	350 psl
LPG Discharge on Disoonnect	4.3cc
Temperature	-40℃ to 85℃(-400F to 1850F)
Materials	Body	Aluminum
	Internal Components	Brass/Steel
	External Components	Brass/Stainless Steel



• LPG Breakaway



Thread: M27*1.5	Maximum Pull: 120Bar
Material: Stainless Steel	Flow Rate: 5-50L/min



• LPG Solenoid Valve



The main valve diaphragm is special material with strong anti-corrosion, resist in low temperature. Special stainless steel magnetic material never rusts and generates remained magnetism. Class F loop with good insulation.



Diameter: 20mm 3/4"

Anti-Explosion Class: EXdⅡBT



• LPG Manometer



Accuracy: ±2.5%

Pressure: 0~4MPa



• LPG hose



Abrasion resistant quality rubber LPG hose,the size and the color according to customers' request. This is the best quality of high pressure LPG hose in China bring better operation experience. The explosion proof static free delivery hose are flexible and easily handled. All the quality spare parts reduce the cost of maintenance to customers.



• LPG differential valve



Model: LPG-1, LPG-2	Difference Pressure: 0.3Bar
Working Pressure: 1.8MPa	Flow Rate: 50-60L/min



Eaglestar Certification





LPG Components



For LPG machine video, please click here







Factory Showing









Package and Delivery





Customer Visit
