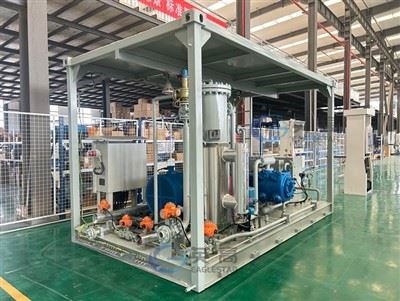

Natural Gas Station

Eaglestar Energy Technology Co., Ltd. is one of the most professional manufacturers and suppliers of natural gas station in China. Please feel free to buy customized natural gas station at competitive price from our factory. For more cheap products, contact us now.



Why Choose Eaglestar Natural Gas Station?





Eaglestar offers a range of high-performance CNG compressors and cascade configurations gesigned to meet the unique demands of CNG gas stations. Our CNG compressors come in four capacity options: 800m³/h, 1000m³/h, 1500m³/h, and 2000m³/h. This flexibility allows businesses to select the most suitable compressor based on the expected daily number of CNG vehicles requiring refueling. For smaller stations, lower capacity compressors can be chosen, while busier locations can benefit from higher capacity options for faster refueling and reduced downtime.



In addition to compressor options, Eaglestar also provides customizable CNG cascades with storage capacities of 2000L, 4000L, 6000L, and 8000L. The appropriate cascade size depends on how many CNG vehicles the daughter station is expected to service daily. This modular approach ensures that each station can optimize fuel storage capacity without over or underestimating demand, allowing for a smooth and efficient operation.



Eaglestar's CNG refueling systems are designed to support seamless integration and easy installation, making them ideal for rapid deployment in urban or remote areas. Our advanced equipment ensures high gas utilization, with over 95% efficiency from CNG transport vehicles. The system also features compact, skid-mounted designs, which reduce installation time and allow gas stations to begin operations quickly, sometimes within just 72 hours.



With a focus on low operating costs, easy maintenance, and enhanced performance, Eaglestar's CNG filling station solutions provide a reliable, cost-effective option for companies looking to expand their CNG refueling infrastructure.





Technical Specification



No.	Item	Content
1	Nominal Operating Pressure	20MPa
2	Total Power	≤52kw,≤95kw
3	Capacity	1000Nm³/h & 2000Nm³/h
4	Control Mode	PLC (Programmable Logic Control) Automatic Control
5	Working Cycle	Continuous
6	Oil Loss Under Normal Situation	Less than 0.1L of oil consumed per 10000 cubic meter gas
7	Explosion-Proof Sign	Exdemb[ib]ibⅡAT4
8	Outlet of High-Pressure Gas (Inner Diameter)	19mm
8	Gas Utilization Rate	≥95%
	Residual Pressure in Cylinders after Discharging	≤1MPa
8	Appropriate Ambient Temperature	-30℃~ +50℃
8	Power of Main Motor	37Kw 1470rpm; 75Kw 1480rpm;
8	Total Power	≤52Kw & ≤95Kw
8	Gross Weight	8500Kg,9700Kg
8	Noise	≤75dB at 1m away
8	Oil Content in CNG	≤10ppm
8	Particie Diameter	≤5um
9	Dimensions (L*W*H)	6058 * 2438 *2591 ( mm )



Cng Techinical Process



Inner Equipment of CNG





Eaglestar Certification



CNG Gas Station

Factory and Customer Visit



Company Info
